Electronic timing

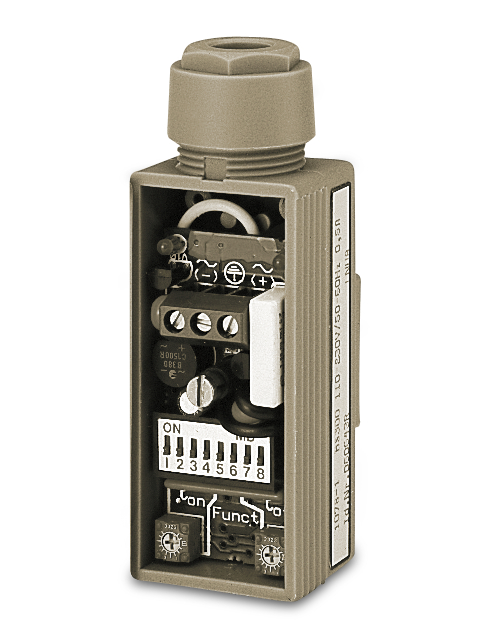

Electronic timing - Accessories for lubrication systems - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

Type Voltage ranges Article ID CAD
1078/1 110 - 230V/50 - 60 Hz AC 312400001
1078/1 24 - 48V/50 - 60 Hz AC and DC 312400002
1078/1 AL 110 - 230V/50 - 60 Hz AC 312400003


Electronic timing - Accessories for lubrication systems - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1

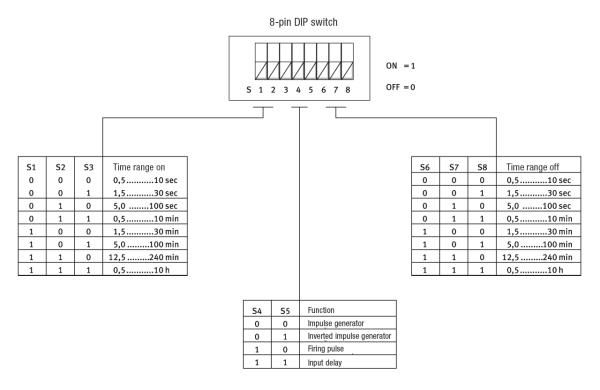

  • Programming diagram for 8-pin DIP switch
