Type CKG

Characteristics

Tolerances for plastic profile cross section Length tolerance

Your selection

Selected variant

Articles for selection:

Total articles:

Type CKG - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

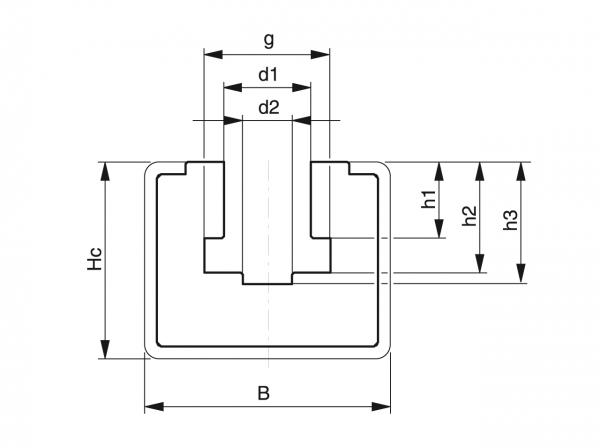

Chain no. DIN 8187 Chain dimensions in inches C profile B Hc d1 d2 g h1 h2 h3 Art.-No. C-Profile Article ID CAD
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C10 30 24 5.3 4.5 10 4.4 7.8 9.3 351020010 221450001
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C10 30 24 8.3 5 13.2 7.4 11.7 13.4 351020010 221450002
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C10 30 24 10.7 6.4 16.5 8.8 14.5 16.2 351020010 221450003
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C10 30 24 12.5 7.4 19.8 11.8 18.5 20.5 351020010 221450004
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C11 45 40 16.7 9.9 26.5 14.8 23.5 25.6 351020011 221450005
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C13 65 55 20 11.9 33 17.8 28.7 31.2 351020013 221450006
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C13 65 55 23.3 13.9 39.8 23.7 36.9 39.6 351020013 221450007
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C13 65 60 26.7 15.9 46.4 23.7 38.9 41.7 351020013 221450008
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C10 30 24 5.3 4.5 10 4.4 7.8 9.3 351060010 221450001
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C10 30 24 8.3 5 13.2 7.4 11.7 13.4 351060010 221450002
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C10 30 24 10.7 6.4 16.5 8.8 14.5 16.2 351060010 221450003
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C10 30 24 12.5 7.4 19.8 11.8 18.5 20.5 351060010 221450004
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C11 45 40 16.7 9.9 26.5 14.8 23.5 25.6 351060011 221450005
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C13 65 55 20 11.9 33 17.8 28.7 31.2 351060013 221450006
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C13 65 55 23.3 13.9 39.8 23.7 36.9 39.6 351060013 221450007
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C13 65 60 26.7 15.9 46.4 23.7 38.9 41.7 351060013 221450008
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C10 30 24 5.3 4.5 10 4.4 7.8 9.3 351120010 221460001
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C10 30 24 8.3 5 13.2 7.4 11.7 13.4 351120010 221460002
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C10 30 24 10.7 6.4 16.5 8.8 14.5 16.2 351120010 221460003
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C10 30 24 12.5 7.4 19.8 11.8 18.5 20.5 351120010 221460004
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C11 45 40 16.7 9.9 26.5 14.8 23.5 25.6 351120011 221460005
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C13 65 55 20 11.9 33 17.8 28.7 31.2 351120013 221460006
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C13 65 55 23.3 13.9 39.8 23.7 36.9 39.6 351120013 221460007
Original Material "S"® Green S profile (3,048mm 10 ft.) Galvanized steel C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C13 65 60 26.7 15.9 46.4 23.7 38.9 41.7 351120013 221460008
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C10 30 24 5.3 4.5 10 4.4 7.8 9.3 351090010 221450101
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C10 30 24 8.3 5 13.2 7.4 11.7 13.4 351090010 221450102
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C10 30 24 10.7 6.4 16.5 8.8 14.5 16.2 351090010 221450103
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C10 30 24 12.5 7.4 19.8 11.8 18.5 20.5 351090010 221450104
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C11 45 40 16.7 9.9 26.5 14.8 23.5 25.6 351090011 221450105
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C13 65 55 20 11.9 33 17.8 28.7 31.2 351090013 221450106
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C13 65 55 23.3 13.9 39.8 23.7 36.9 39.6 351090013 221450107
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C13 65 60 26.7 15.9 46.4 23.7 38.9 41.7 351090013 221450108
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C10 30 24 5.3 4.5 10 4.4 7.8 9.3 351020110 221450001
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C10 30 24 8.3 5 13.2 7.4 11.7 13.4 351020110 221450002
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C10 30 24 10.7 6.4 16.5 8.8 14.5 16.2 351020110 221450003
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C10 30 24 12.5 7.4 19.8 11.8 18.5 20.5 351020110 221450004
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C11 45 40 16.7 9.9 26.5 14.8 23.5 25.6 351020111 221450005
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C13 65 55 20 11.9 33 17.8 28.7 31.2 351020113 221450006
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C13 65 55 23.3 13.9 39.8 23.7 36.9 39.6 351020113 221450007
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C13 65 60 26.7 15.9 46.4 23.7 38.9 41.7 351020113 221450008
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C10 30 24 5.3 4.5 10 4.4 7.8 9.3 351120110 221460001
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C10 30 24 8.3 5 13.2 7.4 11.7 13.4 351120110 221460002
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C10 30 24 10.7 6.4 16.5 8.8 14.5 16.2 351120110 221460003
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C10 30 24 12.5 7.4 19.8 11.8 18.5 20.5 351120110 221460004
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C11 45 40 16.7 9.9 26.5 14.8 23.5 25.6 351120111 221460005
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C13 65 55 20 11.9 33 17.8 28.7 31.2 351120113 221460006
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C13 65 55 23.3 13.9 39.8 23.7 36.9 39.6 351120113 221460007
Original Material "S"® Green S profile (3,048mm 10 ft.) Stainless steel (V2A) C profile (3,048mm 10 ft.) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C13 65 60 26.7 15.9 46.4 23.7 38.9 41.7 351120113 221460008
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 06C-1 (ASA/JIS 35) 3/8" x 3/16" C10 30 24 5.3 4.5 10 4.4 7.8 9.3 351090110 221450101
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C10 30 24 8.3 5 13.2 7.4 11.7 13.4 351090110 221450102
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C10 30 24 10.7 6.4 16.5 8.8 14.5 16.2 351090110 221450103
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C10 30 24 12.5 7.4 19.8 11.8 18.5 20.5 351090110 221450104
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C11 45 40 16.7 9.9 26.5 14.8 23.5 25.6 351090111 221450105
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C13 65 55 20 11.9 33 17.8 28.7 31.2 351090113 221450106
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C13 65 55 23.3 13.9 39.8 23.7 36.9 39.6 351090113 221450107
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C13 65 60 26.7 15.9 46.4 23.7 38.9 41.7 351090113 221450108
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 08A-1 (ASA/JIS 40) 1/2" x 5/16" C10 30 24 8.3 5 13.2 7.4 11.7 13.4 351060110 221450002
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 10A-1 (ASA/JIS 50) 5/8" x 3/8" C10 30 24 10.7 6.4 16.5 8.8 14.5 16.2 351060110 221450003
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 12A-1 (ASA/JIS 60) 3/4" x 1/2" C10 30 24 12.5 7.4 19.8 11.8 18.5 20.5 351060110 221450004
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 16A-1 (ASA/JIS 80) 1" x 5/8" C11 45 40 16.7 9.9 26.5 14.8 23.5 25.6 351060111 221450005
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 20A-1 (ASA/JIS 100) 1 1/4" x 3/4" C13 65 55 20 11.9 33 17.8 28.7 31.2 351060113 221450006
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 24A-1 (ASA/JIS 120) 1 1/2" x 1" C13 65 55 23.3 13.9 39.8 23.7 36.9 39.6 351060112 221450007
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8188 (ASA/JIS) DIN 8188 - 28A-1 (ASA/JIS 140) 1 3/4" x 1" C13 65 60 26.7 15.9 46.4 23.7 38.9 41.7 351060113 221450008
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C10 30 24 6.6 4 9.4 3.6 7 8 351020010 221410001
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C10 30 24 6.6 4 9.4 5.5 8.9 10 351020010 221410002
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C10 30 24 8 5 10.8 4.5 8 9.5 351020010 221410003
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C10 30 24 8 5 11.8 6.2 9.8 11.3 351020010 221410020
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" C10 30 24 8.8 5 12.8 6.2 10.2 11.7 351020010 221410021
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C10 30 24 8.9 5 12.8 7.4 11.5 13 351020010 221410004
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C10 30 24 10.6 6 15.4 6.2 10.2 11.6 351020010 221410022
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C10 30 24 10.6 6 15.4 9.3 13.5 14.9 351020010 221410005
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C10 30 24 12.4 7 17 11.3 15.9 17.5 351020010 221410006
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C11 45 40 16.4 10 24 16 25.7 27.7 351020011 221410007
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C11 45 40 20 11 28 18 29.5 31.7 351020011 221410008
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C13 65 55 27 16 36.6 24 38.2 41.2 351020013 221410009
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C13 65 60 30 17 41 30 47 49 351020013 221410010
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C13 65 60 31 19 44.6 30 47.3 50 351020013 221410011
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C10 30 24 6.6 4 9.4 3.6 7 8 351060010 221410001
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C10 30 24 6.6 4 9.4 5.5 8.9 10 351060010 221410002
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C10 30 24 8 5 10.8 4.5 8 9.5 351060010 221410003
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C10 30 24 8 5 11.8 6.2 9.8 11.3 351060010 221410020
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" C10 30 24 8.8 5 12.8 6.2 10.2 11.7 351060010 221410021
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C10 30 24 8.9 5 12.8 7.4 11.5 13 351060010 221410004
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C10 30 24 10.6 6 15.4 6.2 10.2 11.6 351060010 221410022
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C10 30 24 10.6 6 15.4 9.3 13.5 14.9 351060010 221410005
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C10 30 24 12.4 7 17 11.3 15.9 17.5 351060010 221410006
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C11 45 40 16.4 10 24 16 25.7 27.7 351060011 221410007
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C11 45 40 20 11 28 18 29.5 31.7 351060011 221410008
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C13 65 55 27 16 36.6 24 38.2 41.2 351060013 221410009
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C13 65 60 30 17 41 30 47 49 351060013 221410010
Original Material "S"® Green S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C13 65 60 31 19 44.6 30 47.3 50 351060013 221410011
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C10 30 24 6.6 4 9.4 3.6 7 8 351020110 221410001
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C10 30 24 6.6 4 9.4 5.5 8.9 10 351020110 221410002
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C10 30 24 8 5 10.8 4.5 8 9.5 351020110 221410003
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C10 30 24 8 5 11.8 6.2 9.8 11.3 351020110 221410020
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" C10 30 24 8.8 5 12.8 6.2 10.2 11.7 351020110 221410021
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C10 30 24 8.9 5 12.8 7.4 11.5 13 351020110 221410004
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C10 30 24 10.6 6 15.4 6.2 10.2 11.6 351020110 221410022
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C10 30 24 10.6 6 15.4 9.3 13.5 14.9 351020110 221410005
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C10 30 24 12.4 7 17 11.3 15.9 17.5 351020110 221410006
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C11 45 40 16.4 10 24 16 25.7 27.7 351020111 221410007
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C11 45 40 20 11 28 18 29.5 31.7 351020111 221410008
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C13 65 55 27 16 36.6 24 38.2 41.2 351020113 221410009
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C13 65 60 30 17 41 30 47 49 351020113 221410010
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C13 65 60 31 19 44.6 30 47.3 50 351020113 221410011
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C10 30 24 6.6 4 9.4 3.6 7 8 351060110 221410001
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C10 30 24 6.6 4 9.4 5.5 8.9 10 351060110 221410002
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C10 30 24 8 5 10.8 4.5 8 9.5 351060110 221410003
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C10 30 24 8 5 11.8 6.2 9.8 11.3 351060110 221410020
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" C10 30 24 8.8 5 12.8 6.2 10.2 11.7 351060110 221410021
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C10 30 24 8.9 5 12.8 7.4 11.5 13 351060110 221410004
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C10 30 24 10.6 6 15.4 6.2 10.2 11.6 351060110 221410022
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C10 30 24 10.6 6 15.4 9.3 13.5 14.9 351060110 221410005
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C10 30 24 12.4 7 17 11.3 15.9 17.5 351060110 221410006
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C11 45 40 16.4 10 24 16 25.7 27.7 351060111 221410007
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C11 45 40 20 11 28 18 29.5 31.7 351060111 221410008
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C13 65 55 27 16 36.6 24 38.2 41.2 351060113 221410009
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C13 65 60 30 17 41 30 47 49 351060113 221410010
Original Material "S"® Green S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C13 65 60 31 19 44.6 30 47.3 50 351060113 221410011
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C10 30 24 6.6 4 9.4 3.6 7 8 351090010 221410101
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C10 30 24 6.6 4 9.4 5.5 8.9 10 351090010 221410102
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C10 30 24 8 5 10.8 4.5 8 9.5 351090010 221410103
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C10 30 24 8 5 11.8 6.2 9.8 11.3 351090010 221410120
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" C10 30 24 8.8 5 12.8 6.2 10.2 11.7 351090010 221410121
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C10 30 24 8.9 5 12.8 7.4 11.5 13 351090010 221410104
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C10 30 24 10.6 6 15.4 6.2 10.2 11.6 351090010 221410122
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C10 30 24 10.6 6 15.4 9.3 13.5 14.9 351090010 221410105
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C10 30 24 12.4 7 17 11.3 15.9 17.5 351090010 221410106
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C11 45 40 16.4 10 24 16 25.7 27.7 351090011 221410107
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C11 45 40 20 11 28 18 29.5 31.7 351090011 221410108
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C13 65 55 27 16 36.6 24 38.2 41.2 351090013 221410109
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C13 65 60 30 17 41 30 47 49 351090013 221410110
Original Material "S"® Green S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C13 65 60 31 19 44.6 30 47.3 50 351090013 221410111
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C10 30 24 6.6 4 9.4 3.6 7 8 351090110 221410101
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C10 30 24 6.6 4 9.4 5.5 8.9 10 351090110 221410102
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C10 30 24 8 5 10.8 4.5 8 9.5 351090110 221410103
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C10 30 24 8 5 11.8 6.2 9.8 11.3 351090110 221410120
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" C10 30 24 8.8 5 12.8 6.2 10.2 11.7 351090110 221410121
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C10 30 24 8.9 5 12.8 7.4 11.5 13 351090110 221410104
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C10 30 24 10.6 6 15.4 6.2 10.2 11.6 351090110 221410122
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C10 30 24 10.6 6 15.4 9.3 13.5 14.9 351090110 221410105
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C10 30 24 12.4 7 17 11.3 15.9 17.5 351090110 221410106
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C11 45 40 16.4 10 24 16 25.7 27.7 351090111 221410107
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C11 45 40 20 11 28 18 29.5 31.7 351090111 221410108
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C13 65 55 27 16 36.6 24 38.2 41.2 351090113 221410109
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C13 65 60 30 17 41 30 47 49 351090113 221410110
Original Material "S"® Green S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C13 65 60 31 19 44.6 30 47.3 50 351090113 221410111
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C10 30 24 6.6 4 9.4 3.6 7 8 351020010 221420001
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C10 30 24 6.6 4 9.4 5.5 8.9 10 351020010 221420002
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C10 30 24 8 5 10.8 4.5 8 9.5 351020010 221420003
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C10 30 24 8 5 11.8 6.2 9.8 11.3 351020010 221420020
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" C10 30 24 8.8 5 12.8 6.2 10.2 11.7 351020010 221420021
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C10 30 24 8.9 5 12.8 7.4 11.5 13 351020010 221420004
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C10 30 24 10.6 6 15.4 6.2 10.2 11.6 351020010 221420022
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C10 30 24 10.6 6 15.4 9.3 13.5 14.9 351020010 221420005
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C10 30 24 12.4 7 17 11.3 15.9 17.5 351020010 221420006
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C11 45 40 16.4 10 24 16 25.7 27.7 351020011 221420007
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C11 45 40 20 11 28 18 29.5 31.7 351020011 221420008
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C13 65 55 27 16 36.6 24 38.2 41.2 351020013 221420009
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C13 65 60 30 17 41 30 47 49 351020013 221420010
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C13 65 60 31 19 44.6 30 47.3 50 351020013 221420011
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C10 30 24 6.6 4 9.4 3.6 7 8 351060010 221420001
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C10 30 24 6.6 4 9.4 5.5 8.9 10 351060010 221420002
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C10 30 24 8 5 10.8 4.5 8 9.5 351060010 221420003
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C10 30 24 8 5 11.8 6.2 9.8 11.3 351060010 221420020
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" C10 30 24 8.8 5 12.8 6.2 10.2 11.7 351060010 221420021
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C10 30 24 8.9 5 12.8 7.4 11.5 13 351060010 221420004
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C10 30 24 10.6 6 15.4 6.2 10.2 11.6 351060010 221420022
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C10 30 24 10.6 6 15.4 9.3 13.5 14.9 351060010 221420005
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C10 30 24 12.4 7 17 11.3 15.9 17.5 351060010 221420006
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C11 45 40 16.4 10 24 16 25.7 27.7 351060011 221420007
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C11 45 40 20 11 28 18 29.5 31.7 351060011 221420008
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C13 65 55 27 16 36.6 24 38.2 41.2 351060013 221420009
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C13 65 60 30 17 41 30 47 49 351060013 221420010
Material "S"® 1000 S profile (2,000mm) Galvanized steel C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C13 65 60 31 19 44.6 30 47.3 50 351060013 221420011
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C10 30 24 6.6 4 9.4 3.6 7 8 351020110 221420001
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C10 30 24 6.6 4 9.4 5.5 8.9 10 351020110 221420002
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C10 30 24 8 5 10.8 4.5 8 9.5 351020110 221420003
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C10 30 24 8 5 11.8 6.2 9.8 11.3 351020110 221420020
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" C10 30 24 8.8 5 12.8 6.2 10.2 11.7 351020110 221420021
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C10 30 24 8.9 5 12.8 7.4 11.5 13 351020110 221420004
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C10 30 24 10.6 6 15.4 6.2 10.2 11.6 351020110 221420022
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C10 30 24 10.6 6 15.4 9.3 13.5 14.9 351020110 221420005
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C10 30 24 12.4 7 17 11.3 15.9 17.5 351020110 221420006
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C11 45 40 16.4 10 24 16 25.7 27.7 351020111 221420007
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C11 45 40 20 11 28 18 29.5 31.7 351020111 221420008
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C13 65 55 27 16 36.6 24 38.2 41.2 351020113 221420009
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C13 65 60 30 17 41 30 47 49 351020113 221420010
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (2,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C13 65 60 31 19 44.6 30 47.3 50 351020113 221420011
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C10 30 24 6.6 4 9.4 3.6 7 8 351060110 221420001
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C10 30 24 6.6 4 9.4 5.5 8.9 10 351060110 221420002
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C10 30 24 8 5 10.8 4.5 8 9.5 351060110 221420003
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C10 30 24 8 5 11.8 6.2 9.8 11.3 351060110 221420020
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" C10 30 24 8.8 5 12.8 6.2 10.2 11.7 351060110 221420021
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C10 30 24 8.9 5 12.8 7.4 11.5 13 351060110 221420004
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C10 30 24 10.6 6 15.4 6.2 10.2 11.6 351060110 221420022
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C10 30 24 10.6 6 15.4 9.3 13.5 14.9 351060110 221420005
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C10 30 24 12.4 7 17 11.3 15.9 17.5 351060110 221420006
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C11 45 40 16.4 10 24 16 25.7 27.7 351060111 221420007
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C11 45 40 20 11 28 18 29.5 31.7 351060111 221420008
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C13 65 55 27 16 36.6 24 38.2 41.2 351060113 221420009
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C13 65 60 30 17 41 30 47 49 351060113 221420010
Material "S"® 1000 S profile (2,000mm) Stainless steel (V2A) C profile (6,000mm) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C13 65 60 31 19 44.6 30 47.3 50 351060113 221420011
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C10 30 24 6.6 4 9.4 3.6 7 8 351090010 221420101
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C10 30 24 6.6 4 9.4 5.5 8.9 10 351090010 221420102
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C10 30 24 8 5 10.8 4.5 8 9.5 351090010 221420103
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C10 30 24 8 5 11.8 6.2 9.8 11.3 351090010 221420120
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" C10 30 24 8.8 5 12.8 6.2 10.2 11.7 351090010 221420121
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C10 30 24 8.9 5 12.8 7.4 11.5 13 351090010 221420104
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C10 30 24 10.6 6 15.4 6.2 10.2 11.6 351090010 221420122
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C10 30 24 10.6 6 15.4 9.3 13.5 14.9 351090010 221420105
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C10 30 24 12.4 7 17 11.3 15.9 17.5 351090010 221420106
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C11 45 40 16.4 10 24 16 25.7 27.7 351090011 221420107
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C11 45 40 20 11 28 18 29.5 31.7 351090011 221420108
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C13 65 55 27 16 36.6 24 38.2 41.2 351090013 221420109
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C13 65 60 30 17 41 30 47 49 351090013 221420110
Material "S"® 1000 S profile (fixed length) Galvanized steel C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C13 65 60 31 19 44.6 30 47.3 50 351090013 221420111
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 3/8" x 5/32" C10 30 24 6.6 4 9.4 3.6 7 8 351090110 221420101
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 06B-1 3/8" x 7/32" C10 30 24 6.6 4 9.4 5.5 8.9 10 351090110 221420102
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 083-1 1/2" x 3/16" C10 30 24 8 5 10.8 4.5 8 9.5 351090110 221420103
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 085-1 1/2" x 1/4" C10 30 24 8 5 11.8 6.2 9.8 11.3 351090110 221420120
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - g=12,8mm 1/2" x 1/4" C10 30 24 8.8 5 12.8 6.2 10.2 11.7 351090110 221420121
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 08B-1 1/2" x 5/16" C10 30 24 8.9 5 12.8 7.4 11.5 13 351090110 221420104
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 5/8" x 1/4" C10 30 24 10.6 6 15.4 6.2 10.2 11.6 351090110 221420122
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 10B-1 5/8" x 3/8" C10 30 24 10.6 6 15.4 9.3 13.5 14.9 351090110 221420105
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 12B-1 3/4" x 7/16" C10 30 24 12.4 7 17 11.3 15.9 17.5 351090110 221420106
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 16B-1 1" x 17 mm C11 45 40 16.4 10 24 16 25.7 27.7 351090111 221420107
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 20B-1 1 1/4" x 3/4" C11 45 40 20 11 28 18 29.5 31.7 351090111 221420108
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 24B-1 1 1/2" x 1" C13 65 55 27 16 36.6 24 38.2 41.2 351090113 221420109
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 28B-1 1 3/4" x 31 mm C13 65 60 30 17 41 30 47 49 351090113 221420110
Material "S"® 1000 S profile (fixed length) Stainless steel (V2A) C profile (fixed length) Profile cross section, 1-part design DIN 8187 DIN 8187 - 32B-1 2" x 31 mm C13 65 60 31 19 44.6 30 47.3 50 351090113 221420111


Type CKG - Chain guides for roller chains - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1
